5 Easy Steps to Find Alpha on a Lineweaver-Burk Plot

Unlocking the secrets of enzyme kinetics often hinges on understanding the intricate relationship between substrate concentration and reaction velocity. While the Michaelis-Menten equation provides a foundational framework, the Lineweaver-Burk plot offers a powerful graphical tool for dissecting these relationships and extracting key kinetic parameters. Furthermore, deciphering the elusive alpha value, a measure of allosteric regulation, can be achieved through careful analysis of this double reciprocal plot. Specifically, the intersection of the Lineweaver-Burk plot with the x-axis holds the key to determining alpha, providing crucial insights into how allosteric effectors modulate enzyme activity. In this exploration, we delve into the precise steps involved in extracting alpha from a Lineweaver-Burk plot, empowering researchers to unravel the complexities of enzyme regulation and uncover the mechanisms that govern biological processes. Moreover, we will discuss the importance of accurate data interpretation and highlight the limitations of this method, ensuring a comprehensive understanding of its application in enzyme kinetics studies.

To begin, constructing a Lineweaver-Burk plot requires the meticulous collection of reaction velocity data across a range of substrate concentrations, both in the presence and absence of the allosteric effector. Subsequently, these data are transformed into their reciprocal forms, plotting 1/V (the reciprocal of velocity) against 1/[S] (the reciprocal of substrate concentration). Consequently, two lines emerge on the plot, one representing the enzyme’s behavior in the absence of the effector and the other reflecting its activity in the presence of the effector. Importantly, the x-intercept of the line representing the enzyme’s activity *without* the allosteric effector represents -1/Km, where Km is the Michaelis constant. However, the x-intercept of the line representing the enzyme’s activity *with* the allosteric effector present gives us -1/(αKm). Therefore, by determining the x-intercept of both lines, we can calculate alpha. For instance, if the x-intercept in the presence of the effector is twice as far from the origin as the x-intercept without the effector, alpha is equal to 2. This indicates that the effector has doubled the apparent Km of the enzyme. Critically, this analysis provides a quantitative measure of the allosteric effector’s influence on substrate binding affinity, paving the way for deeper understanding of enzyme regulation mechanisms.

Nevertheless, it’s crucial to acknowledge the limitations of using Lineweaver-Burk plots for alpha determination. Firstly, the double reciprocal transformation inherent in the Lineweaver-Burk plot can amplify experimental errors, particularly at low substrate concentrations, potentially skewing the calculated alpha value. Secondly, the assumption of a simple hyperbolic relationship between substrate concentration and reaction velocity may not always hold true, especially in complex enzyme systems exhibiting cooperativity or multiple substrate binding sites. Therefore, it’s essential to validate the results obtained from Lineweaver-Burk plots with other methods, such as fitting the data directly to the Michaelis-Menten equation or using more sophisticated non-linear regression techniques. In addition, considering the potential influence of experimental error and the underlying assumptions of the Lineweaver-Burk plot is crucial for accurate interpretation of results. By carefully considering these factors, researchers can harness the power of the Lineweaver-Burk plot while mitigating its limitations, ensuring robust and reliable determination of alpha and gaining valuable insights into the intricacies of enzyme regulation.

Understanding the Lineweaver-Burk Plot and its Relation to Enzyme Kinetics

The Lineweaver-Burk plot, also known as the double-reciprocal plot, is a graphical representation of enzyme kinetics data. It’s a handy tool derived from the Michaelis-Menten equation, which describes the relationship between the rate of an enzyme-catalyzed reaction (V) and the concentration of the substrate ([S]). While the Michaelis-Menten equation itself describes a hyperbolic curve, the Lineweaver-Burk plot linearizes this relationship, making it easier to determine important kinetic parameters.

Let’s break down how this linearization works. The Michaelis-Menten equation is given by:

V = (Vmax[S]) / (Km + [S])

Where:

• V represents the reaction velocity (rate)
• Vmax represents the maximum reaction velocity
• [S] represents the substrate concentration
• Km (the Michaelis constant) represents the substrate concentration at which the reaction velocity is half of Vmax. It’s an indicator of the enzyme’s affinity for the substrate. A lower Km suggests a higher affinity.

To get the Lineweaver-Burk plot, we take the reciprocal of both sides of the Michaelis-Menten equation:

1/V = (Km + [S]) / (Vmax[S])

This can be rearranged further to the standard equation of a straight line (y = mx + c):

1/V = (Km/Vmax)(1/[S]) + 1/Vmax

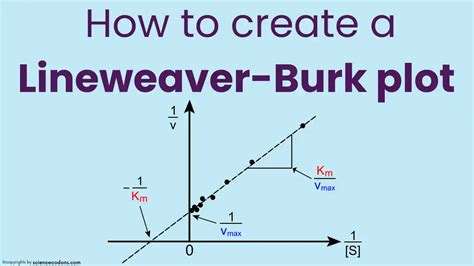

Now, if we plot 1/V (on the y-axis) against 1/[S] (on the x-axis), we get a straight line. This is the Lineweaver-Burk plot.

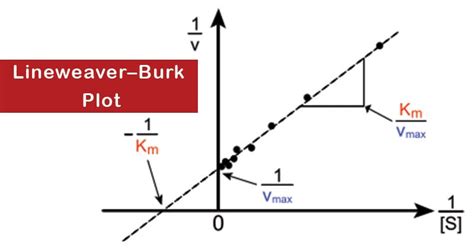

The beauty of this linearization lies in the easy interpretation of the plot’s intercepts and slope:

Therefore, by simply creating the plot from experimental data and analyzing these elements, we can readily determine Vmax and Km, providing valuable insights into the enzyme’s kinetic behavior. While the Lineweaver-Burk plot simplifies the determination of these constants, it’s worth noting that it can amplify errors in measurements at low substrate concentrations, as these data points are compressed at the far right of the plot. Despite this potential drawback, it remains a useful tool for understanding enzyme kinetics.

Identifying Key Components: X-intercept, Y-intercept, and Slope

The Lineweaver-Burk plot, also known as the double-reciprocal plot, is a graphical representation of enzyme kinetics. It takes the Michaelis-Menten equation, which describes the relationship between enzyme activity and substrate concentration, and transforms it into a linear form. This linearization makes it easier to visually determine important kinetic parameters like Vmax (the maximum rate of the reaction) and Km (the Michaelis constant, which represents the substrate concentration at half of Vmax). To understand how these values are extracted, we need to break down the key components of the Lineweaver-Burk plot: the x-intercept, the y-intercept, and the slope.

X-intercept: Finding -1/Km

The x-intercept of the Lineweaver-Burk plot is the point where the line crosses the x-axis. Mathematically, this occurs when the y-value (1/V) is zero. Looking at the linearized Michaelis-Menten equation (1/V = (Km/Vmax)(1/[S]) + 1/Vmax), we can see that setting 1/V to zero allows us to solve for 1/[S], which at the x-intercept equals -1/Km. Therefore, to find Km, simply take the reciprocal of the x-intercept and multiply it by -1. This value tells us the substrate concentration required to achieve half of the maximum reaction velocity. A smaller Km indicates a higher affinity of the enzyme for its substrate.

Y-intercept: Determining 1/Vmax

The y-intercept is where the line crosses the y-axis. This occurs when the x-value (1/[S]) is zero. Substituting 1/[S] = 0 into the Lineweaver-Burk equation simplifies it to 1/V = 1/Vmax. This makes the y-intercept directly equal to 1/Vmax. To find Vmax, simply take the reciprocal of the y-intercept. Vmax represents the maximum rate of the enzyme-catalyzed reaction when the enzyme is saturated with substrate. A higher Vmax indicates a faster overall reaction rate.

Slope: Unveiling Km/Vmax and its Significance

The slope of the Lineweaver-Burk plot is defined as the change in y (1/V) divided by the change in x (1/[S]). By examining the Lineweaver-Burk equation (1/V = (Km/Vmax)(1/[S]) + 1/Vmax), we can see that the slope of the line corresponds to Km/Vmax. This relationship provides a useful way to double-check your calculations or to determine one parameter if you already know the other. For instance, if you’ve calculated Vmax from the y-intercept and you know the slope, you can easily determine Km. Conversely, if you’ve found Km from the x-intercept, you can use the slope to calculate Vmax. The slope itself doesn’t have a direct physical interpretation like the intercepts, but it reflects the interplay between enzyme affinity and maximum velocity. A steeper slope suggests a higher Km/Vmax ratio, reflecting either a lower enzyme affinity (higher Km), a lower maximum velocity (lower Vmax), or a combination of both. Conversely, a shallower slope points to a lower Km/Vmax, indicating either a higher affinity, a higher maximum velocity, or a combination of both. Therefore, the slope adds an additional layer of information to help fully characterize the enzyme’s kinetics. Consider the following examples to further clarify this point:

Understanding the relationship between these three components — the x-intercept, the y-intercept, and the slope — empowers you to fully leverage the Lineweaver-Burk plot for extracting meaningful kinetic information.

Calculating Km: Utilizing the X-intercept

The Lineweaver-Burk plot, also known as the double reciprocal plot, is a graphical representation of enzyme kinetics data. It’s derived from the Michaelis-Menten equation and provides a useful way to determine important kinetic parameters, including the Michaelis constant (Km) and the maximum velocity (Vmax) of an enzyme-catalyzed reaction. One of the key advantages of this plot is the straightforward determination of Km using the x-intercept.

Recall that the Lineweaver-Burk equation is the reciprocal of the Michaelis-Menten equation, expressed as:

1/V = (Km/Vmax)(1/[S]) + 1/Vmax

This equation resembles the equation of a straight line (y = mx + c), where:

To find Km, we focus on the x-intercept. The x-intercept is the point where the line crosses the x-axis, meaning the y-value (1/V) is zero. Setting 1/V to zero in the Lineweaver-Burk equation, we get:

0 = (Km/Vmax)(1/[S]) + 1/Vmax

Now, we solve for 1/[S]:

-(1/Vmax) = (Km/Vmax)(1/[S])

-(1/Vmax) * (Vmax/Km) = 1/[S]

-1/Km = 1/[S]

Therefore, the x-intercept, which represents 1/[S] when 1/V = 0, is equal to -1/Km. To obtain the value of Km, we simply take the negative reciprocal of the x-intercept. For example, if the x-intercept is -0.2 mM⁻¹, then Km is -1/(-0.2 mM⁻¹) = 5 mM. This simple calculation provides a direct way to determine Km from the Lineweaver-Burk plot.

Remember, the x-axis represents the reciprocal of substrate concentration (1/[S]), and the y-axis represents the reciprocal of reaction velocity (1/V). Accurate plotting of your experimental data is crucial for reliable determination of the x-intercept and subsequent Km calculation. While the Lineweaver-Burk plot is a valuable tool, be mindful of its limitations. At low substrate concentrations, small errors in measuring velocity can lead to significant distortions in the double reciprocal plot, potentially affecting the accuracy of Km determination.

Practical Steps: Finding Alpha Graphically

The Lineweaver-Burk plot, while having its limitations, offers a graphical method for determining alpha (α), a measure of the effect of an inhibitor on enzyme kinetics. Alpha represents the factor by which the slope of the Lineweaver-Burk plot changes in the presence of a competitive inhibitor. It’s related to the inhibitor constant (Ki) and the inhibitor concentration ([I]) by the following equation: α = 1 + ([I]/Ki). This means an alpha of 1 indicates no inhibition. Anything greater than 1 signifies some level of inhibition, with higher values indicating stronger inhibition.

Understanding the Lineweaver-Burk Plot

The Lineweaver-Burk plot is a double reciprocal plot of the Michaelis-Menten equation. It plots 1/V (the reciprocal of the reaction velocity) on the y-axis versus 1/[S] (the reciprocal of the substrate concentration) on the x-axis. This transformation generates a straight line with a y-intercept equal to 1/Vmax (maximum velocity) and an x-intercept equal to -1/Km (Michaelis constant).

Impact of Inhibitors on the Lineweaver-Burk Plot

Different types of enzyme inhibitors alter the Lineweaver-Burk plot in distinct ways. Competitive inhibitors, the focus here, affect the slope of the line but leave the y-intercept (1/Vmax) unchanged. This is because competitive inhibitors increase the apparent Km of the enzyme but do not affect Vmax. In contrast, noncompetitive inhibitors alter both the slope and the y-intercept, while uncompetitive inhibitors change the y-intercept without altering the slope. Being able to visually differentiate these patterns helps identify the type of inhibition.

Finding the Slope With and Without Inhibitor

To determine alpha graphically, you’ll need Lineweaver-Burk plots generated both in the presence and absence of the inhibitor. Think of these plots as snapshots of the enzyme’s activity under different conditions. Your “control” plot (no inhibitor) represents the baseline activity, and the “inhibited” plot shows how the inhibitor modifies this activity. Ensure that both plots are generated under identical conditions, except for the presence or absence of the inhibitor, to allow for direct comparison.

Calculating Alpha from the Slopes

The slopes of these lines are key to calculating alpha. Remember that the slope of the Lineweaver-Burk plot is Km/Vmax. Determine the slope of each line—one for the inhibited reaction and one for the uninhibited reaction. You can do this by choosing two points on each line and applying the standard slope formula (rise over run, or change in y divided by change in x).

Interpreting Alpha

Once you have both slopes, alpha is simply the ratio of the slope of the inhibited reaction to the slope of the uninhibited reaction: α = (slope with inhibitor) / (slope without inhibitor). Let’s say your inhibited reaction slope is 0.005 and your uninhibited reaction slope is 0.0025. Your alpha would be 0.005 / 0.0025 = 2. This indicates the apparent Km has doubled in the presence of the inhibitor.

Example Data and Calculation

Let’s illustrate with an example:

Alpha = (Slope with inhibitor) / (Slope without inhibitor) = 0.12 / 0.04 = 3. This indicates that the inhibitor has tripled the apparent Km of the enzyme.

Relating Alpha to Inhibitor Constant (Ki)

Remember the equation α = 1 + ([I]/Ki). If you know the inhibitor concentration ([I]) used in your experiment, you can now use the calculated alpha to determine Ki, the inhibitor constant. Ki provides a measure of the inhibitor’s binding affinity for the enzyme—a lower Ki indicates a tighter binding inhibitor. Rearranging the equation, we get: Ki = [I] / (α - 1). For instance, if [I] was 10 µM and α is 3, then Ki = 10 µM / (3 - 1) = 5 µM. This tells us the inhibitor concentration required to occupy half of the enzyme’s active sites.

Addressing Common Pitfalls in Lineweaver-Burk Analysis

Uneven Data Point Distribution

One common issue with Lineweaver-Burk plots is uneven data point distribution. This often arises from the experimental design where substrate concentrations are chosen in a way that leads to a clustering of points at one end of the plot, typically at high substrate concentrations. This clustering can heavily skew the linear regression, leading to inaccurate estimates of Vmax and Km. To mitigate this, it’s crucial to carefully select a range of substrate concentrations that provide a more even spread of data points across the entire plot. A good approach is to use a geometric progression for substrate concentrations, ensuring adequate representation at both low and high substrate levels. This helps in minimizing the impact of any single data point on the regression analysis, leading to a more reliable estimate of the kinetic parameters.

Ignoring Experimental Error

Another pitfall is neglecting the impact of experimental error. Each data point on the Lineweaver-Burk plot represents an experimental measurement, and every measurement has an associated error. Simply plotting the raw data and performing a linear regression without considering these errors can lead to misleading results. Proper weighting of the data points, based on their respective errors, is essential. Data points with smaller errors should have greater influence on the regression line. Ignoring error can lead to overemphasis of data points with larger errors, potentially skewing the line and leading to incorrect estimates of Km and Vmax. Employing statistical methods that incorporate error, such as weighted linear regression, significantly improves the reliability of the analysis.

Sensitivity to Errors at Low Substrate Concentrations

Lineweaver-Burk plots are particularly sensitive to errors in measurements at low substrate concentrations. Because the reciprocal of the substrate concentration is used on the x-axis, small errors in these measurements become magnified, especially as the substrate concentration approaches zero. This can dramatically affect the slope and intercept of the line, leading to substantial errors in determining Km and Vmax. To address this sensitivity, ensure highly accurate measurements at low substrate concentrations, potentially by replicating these measurements multiple times. If data points at very low substrate concentrations appear to significantly deviate from the general trend, carefully examine them for potential experimental errors. In some cases, it might be necessary to exclude these points from the analysis if they are deemed unreliable, but this should be done cautiously and justified appropriately.

Overemphasis on Data at Low Substrate Concentrations

While sensitivity to errors at low substrate concentrations is a concern, the inverse can also be a problem: overemphasis on low substrate data. Since the reciprocal of low substrate values results in large values on the x-axis, these points can exert undue influence on the linear regression, potentially distorting the fitted line. This can be particularly problematic if the data at higher substrate concentrations are less precise. A balanced approach is crucial. Ensure accurate measurements across the entire substrate range and, as mentioned before, consider using weighting based on experimental error to ensure that no particular subset of data points unduly biases the analysis.

Substrate Inhibition

Substrate inhibition, where high substrate concentrations actually inhibit the reaction rate, can significantly distort Lineweaver-Burk plots. If the substrate range used in the experiment includes inhibitory concentrations, the linearity of the plot will be disrupted, making it impossible to accurately determine Km and Vmax using standard linear regression. Before conducting the analysis, it is essential to assess whether substrate inhibition is likely to be a factor in the reaction being studied. If substrate inhibition is suspected, it’s crucial to either restrict the analysis to the substrate concentration range where the reaction follows Michaelis-Menten kinetics or employ more complex models that account for substrate inhibition. Failing to address substrate inhibition can lead to grossly inaccurate estimates of the kinetic parameters.

Non-Specific Binding of Substrate

If the substrate non-specifically binds to components of the reaction mixture other than the enzyme, it can affect the measured reaction rate and thus distort the Lineweaver-Burk plot. This non-specific binding effectively reduces the free substrate concentration available for the enzyme, leading to an apparent decrease in the reaction rate. This can result in an underestimation of Vmax and a potentially distorted Km value. To minimize this effect, carefully control the composition of the reaction mixture and consider using appropriate controls to account for non-specific binding. If the level of non-specific binding is significant, you may need to adjust your analysis to account for this effect.

Limited Applicability for Multi-Substrate Reactions

Lineweaver-Burk plots are primarily designed for analyzing single-substrate enzyme reactions. Applying them directly to multi-substrate reactions can be misleading. Multi-substrate reactions involve more complex kinetic mechanisms, and the standard Lineweaver-Burk representation cannot adequately capture these complexities. If your reaction involves multiple substrates, consider alternative analysis methods, such as initial rate studies with varying concentrations of one substrate while keeping the others constant, followed by replotting the resulting apparent Km and Vmax values against the varying substrate concentration. These more specialized approaches provide a more accurate representation of the multi-substrate kinetics.

Impact of Outliers

Outliers, data points that significantly deviate from the general trend, can disproportionately influence the Lineweaver-Burk analysis, leading to skewed estimates of Km and Vmax. It is important to carefully examine any potential outliers. A single outlier can substantially alter the slope and intercept of the fitted line, especially in datasets with few data points. If the outliers represent true variance then simply removing them may lead to information loss. One approach to understand the impact of outliers is to perform the regression analysis both with and without the outliers and compare the resulting Km and Vmax values. If the difference is substantial, carefully consider the potential causes of the outlier. It’s crucial to determine whether the outlier is due to experimental error or represents a real deviation from Michaelis-Menten kinetics. If the outlier is deemed to be due to error, it may be justifiable to remove it from the analysis, but this should be done cautiously and documented transparently.

Software and Tools: Simplifying Alpha Determination

Determining alpha, a key parameter in enzyme kinetics representing the factor by which an inhibitor affects the catalytic rate constant (kcat) and/or the enzyme-substrate binding affinity, can be quite complex when done manually. Luckily, a plethora of software and online tools are available to streamline this process, making analysis more efficient and accurate. These resources often offer visual aids, automated calculations, and statistical analysis, reducing the chances of human error and allowing researchers to focus on interpreting the results rather than getting bogged down in the calculations.

Graphing Software

Several graphing software packages excel in Lineweaver-Burk plot analysis. Popular choices like GraphPad Prism, OriginPro, and SigmaPlot provide user-friendly interfaces to input data, generate Lineweaver-Burk plots, and perform linear regression analysis to determine the slope and intercepts. From these values, the software can automatically calculate Vmax, Km, and subsequently, alpha. Some even offer advanced features like weighting data points and comparing different inhibition models.

Specialized Enzyme Kinetics Software

Beyond general graphing software, specialized enzyme kinetics software packages like DynaFit and KinTek Explorer provide a comprehensive toolkit specifically designed for analyzing enzyme kinetic data. These programs offer sophisticated fitting algorithms to handle various enzyme mechanisms, including complex scenarios involving multiple substrates and inhibitors. They can simultaneously fit data from multiple experiments, providing more robust estimations of kinetic parameters, including alpha. This specialized software is particularly beneficial for researchers dealing with complex enzyme systems or needing to discriminate between different inhibition models.

Online Tools and Webservers

For quick and accessible analysis, several online tools and web servers offer Lineweaver-Burk plot analysis functionalities. These tools typically require users to input their data, and the server then automatically generates the plot and calculates the kinetic parameters, including alpha. While they might not offer the same level of customization and advanced features as dedicated software, they provide a convenient and often free alternative for basic analysis.

Choosing the Right Tool

The optimal software or tool depends on the complexity of the enzyme system, the specific research question, and the level of expertise of the user. For straightforward Lineweaver-Burk plot analysis, general graphing software or online tools might suffice. However, for complex enzyme mechanisms or advanced analysis, dedicated enzyme kinetics software packages are often necessary. When evaluating a tool, consider its features, ease of use, accuracy, and availability of support and documentation.

Example of Software Features for Alpha Determination

The following table illustrates the typical features offered by various software categories relating to alpha determination.

Investing time in learning how to use these tools effectively can significantly enhance the efficiency and accuracy of enzyme kinetic analysis. By leveraging the power of these resources, researchers can gain valuable insights into the mechanisms of enzyme inhibition and the impact of inhibitors on enzyme function.

Finding Alpha on a Lineweaver-Burk Plot

The Lineweaver-Burk plot, a double reciprocal transformation of the Michaelis-Menten equation, is a graphical method used in enzyme kinetics to determine important kinetic parameters. While primarily used to determine Vmax (maximum velocity) and Km (Michaelis constant), it can also be used to assess the degree of inhibition and, subsequently, calculate the alpha (α) value, which represents the factor by which the enzyme’s affinity for the substrate is altered in the presence of an inhibitor. Alpha provides insight into the mechanism of inhibition.

To find alpha on a Lineweaver-Burk plot, you must first generate plots for both the uninhibited and inhibited enzyme reactions. This requires measuring the initial reaction velocity (v0) at various substrate concentrations ([S]) in the presence and absence of the inhibitor. After plotting 1/v0 vs. 1/[S] for both conditions, two lines will be generated. The x-intercept of the uninhibited reaction represents -1/Km, and the x-intercept of the inhibited reaction represents -1/αKm.

Alpha can then be calculated by dividing the x-intercept of the uninhibited line by the x-intercept of the inhibited line. A crucial point to remember is that the absolute values of the intercepts are used in this calculation. An alpha value greater than 1 signifies that the inhibitor decreases the enzyme’s affinity for the substrate. Conversely, an alpha value of 1 indicates no change in affinity, while a value less than 1 (though theoretically possible, it’s rarely observed) would imply an increase in affinity.

People Also Ask About Finding Alpha on a Lineweaver-Burk Plot

What does alpha represent in enzyme inhibition?

Alpha (α) is a factor that quantifies the effect of a competitive inhibitor on the apparent affinity of an enzyme for its substrate. It represents the degree to which Km is apparently increased. In other words, it indicates how much more substrate is needed to reach half of Vmax in the presence of the inhibitor compared to its absence.

How is alpha related to the inhibitor concentration?

Alpha is related to the inhibitor concentration ([I]) through the dissociation constant of the enzyme-inhibitor complex (Ki). The specific relationship is α = 1 + ([I]/Ki). This equation demonstrates that as the inhibitor concentration increases, alpha also increases, reflecting a greater decrease in the enzyme’s apparent affinity for the substrate.

Can alpha be less than 1?

While theoretically possible, alpha values less than 1 are rarely observed. An alpha less than 1 would imply that the inhibitor somehow increases the enzyme’s affinity for the substrate. This is not typical of competitive inhibition and might suggest a more complex interaction is occurring, such as allosteric activation or cooperative binding.

What if the lines on the Lineweaver-Burk plot are parallel?

Parallel lines on a Lineweaver-Burk plot indicate uncompetitive inhibition. In this case, both Vmax and Km are reduced by the same factor, and alpha is not traditionally used to describe this type of inhibition. Instead, alpha prime (α’) is used and refers to the factor by which Vmax is reduced. This means that the y-intercept of the inhibited line is α’/Vmax.
